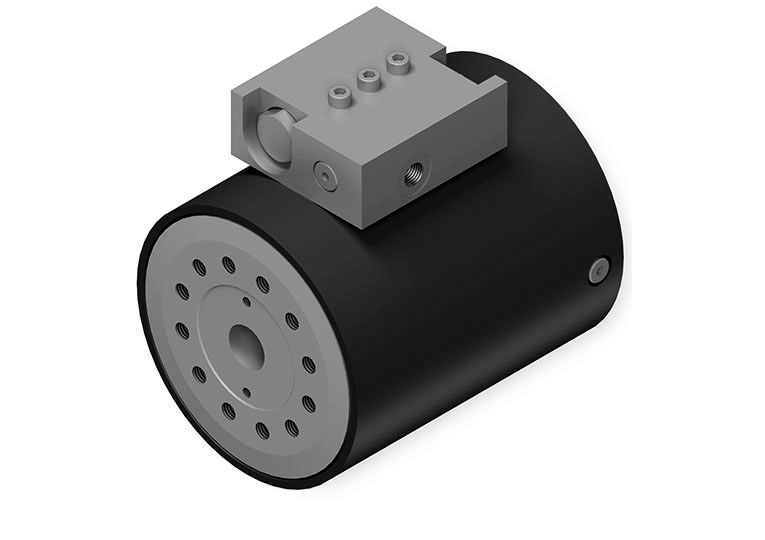

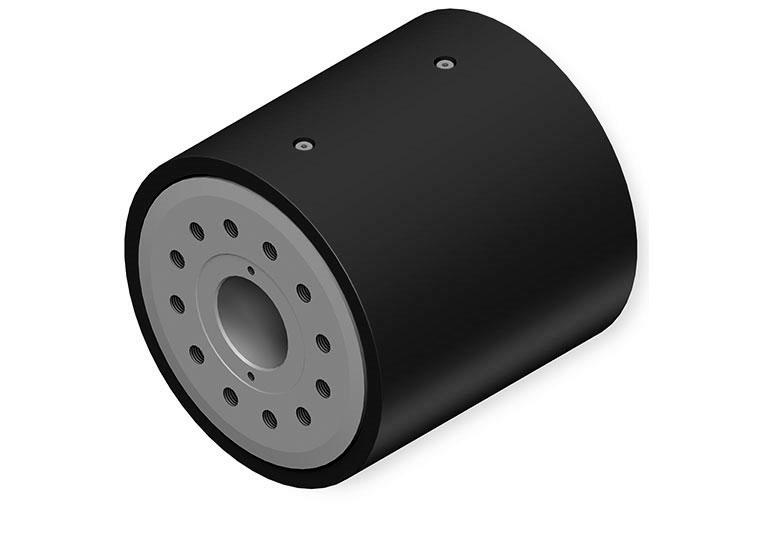

Rotary Actuator DKX-C Series
Rotary Actuator DKX-C Series

The standard products of the rotary actuator DKX-C series can withstand bending moments, have a compact axial structure and can be cantilever mounted. They are generally used for steering mechanisms such as mechanical arms and manipulators.

Key product specifications
  • Standard working pressure: 21Mpa
  • Standard rotation angle: 180°, 360°
  • Driving torque: 190N.M~2825N.M
  • Holding torque: 630N.M~9400N.M
  • Cantilever moment: 565N.M~11300N.M
  • Axial load: 907KG~6800KG
  • Radial load: 907KG~6800KG
  • Torque output forms: flange
  • Mounting type: flange
  • Special models (torque, mounting type and dimensions, etc.) can be customized.
Data Download
C series sample Download
A series sample Download
B series sample Download
D series sample Download
E series sample Download
Features
  • 01Compact configurations

    Large rotation angle is used inside the actuator to shorten the piston stroke.

  • 02High bearing capacity

    The actuator has a special internal structure that allows the actuator to withstand large axial and radial loads.

  • 03Zero leakage

    The unique sealing design allows the actuator to have only a very small amount of leakage that approaches zero.

  • 04Load directly connected

    The load that needs to be driven can be connected directly to the torque output end.

  • 05Customized module

    Customized production can be made according to different needs of customers.

Messages
Online Form

You can contact us via online message or online customer service, or call our sales hotline, we will be happy to help you.

Application fields

Rotary actuators have a wide range of applications, and they can be used in any operating conditions that require rotation, such as excavator attachments, aerial work platforms, automotive engineering, garbage collection vehicles, sanitation machinery, side and rear loaders, tunnel machinery and construction machinery, geological exploration machinery, agricultural machinery, valve actuators and mechanisms that require station conversion (ships....).
